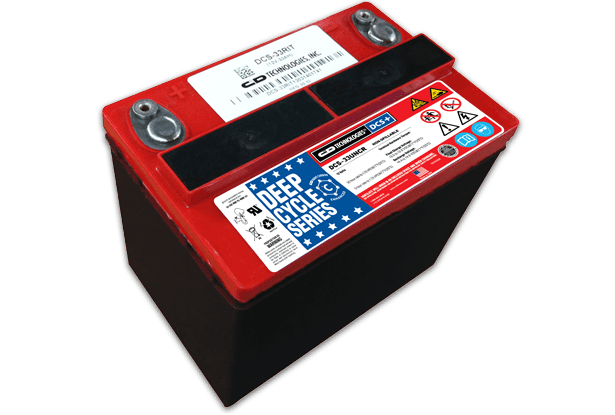

Deep Cycle Series DCS AGM Battery
Deep Cycle Series DCS AGM Battery
For Electrical Vehicle Applications
C&D Technologies' Deep Cycle Series (DCS) batteries are designed to perform regardless of how harsh the operating conditions may be. DCS batteries are designed and manufactured for maximum life in applications which are a combination of float and cycle service or for frequent cycling applications. DCS technology performance is well known in the industry as the leader in high cycle counts and long life.
VRLA Nano-Carbon AGM (VRLA)
65 - 100 Amp-Hours
5,000+ Cycles
Discharge -40°F (-40°C) to +160°F (+71°C) Charge: -10°F (-23°C) to +140°F (+60°C)
• UL-recognized component • Complies with IATA/ICAO Special Provision A6 • Complies with the International Electrotechnical Commission's international standard testing IEC 60095-1 for lead acid starter batteries
Features & Benefits
- Heavy duty DCS plate technology for extended cycle life
- Computer generated grid design optimized for high power density
- Low calcium grid alloy for reduced gas emissions and ease of recycling
- Flame-arresting one-way pressure-relief vent for safety and long life
- Multicell design for economy of installation and maintenance
- Case and cover available in standard polypropylene
- Thermally welded case-to-cover bond to eliminate leakage
- Removable carrying handles (HIT Versions)
- Can be used in any orientation. Upright, side, or end mounting recommended.
- Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance
- Low profile terminals with threaded copper alloy inserts for reduced height, reduced maintenance and increased safety
- UL-recognized component
- Not restricted for air transport – Complies with IATA/ICAO Special Provision A6
- Not restricted for surface transport– classified as non-hazardous material as related to DOT-CFR Title 49 parts 171-189
DCS AGM Battery Models | Additional Data
| DCS Battery Models | Ah Capacity C10 | Ah Capacity C20 | 90 Amps / 300 Amps Runtime Minutes at 77°F (25°C) | 90 Amps / 300 Amps Runtime Minutes at 32°F (0°C) | Recommended Maximum Charging Current (A) | Maximum Discharge Current Limit (Amps) |
|---|---|---|---|---|---|---|
| DCS-18UNC RIT | 17.5 | 18.0 | N/A | N/A | 3110 | 180 |
| DCS-33UNC RIT | 27.6 | 30.0 | 4 | 7+ | 3110 | 600 |
| DCS-40UNC RIT | 36.8 | 40.0 | 4 | 7+ | 3110 | 600 |
| DCS-45UNC RIT | 41.4 | 45.0 | 5 | 9+ | 3110 | 600 |
