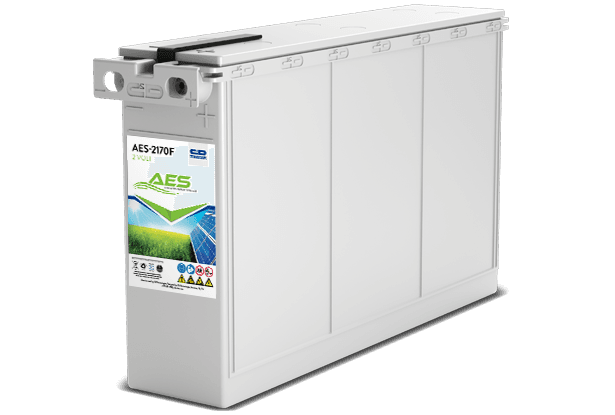

Advanced Energy Storage Lead Carbon AGM Battery

Advanced Energy Storage Lead Carbon AGM Battery

  • Advanced Energy Storage Lead Carbon AGM Battery

Advanced Energy Storage Nano-Carbon AGM Battery

Designed for grid-tied and off-grid energy applications requiring back-up power

C&D’s Advanced Energy Storage (AES) battery line meets the demanding standards of applications that may face extreme temperature, shock, or vibration. Enhanced features such as a rugged case, Deep Cycle Series (DCS) Technology, and Advanced Nano-Carbon® technology make the AES an ideal choice for renewable energy applications, Battery Energy Storage Systems (BESS), or any application that calls for repetitive cycling.

BAttery Quick Facts
Battery type

VRLA Nano-Carbon AGM (VRLA)

capacity

100 - 204 Amp-Hours

design life

3,000 Cycles @ 50% DoD

operating environment

Indoor Outdoor Controlled Outdoor Uncontrolled

Certifications & Compliances

Complies with UN 2794. UL1989 Compliant

Features & Benefits

  • Field-proven DCS high density active material for extended cycle life
  • C&D Nano-Carbon® enhanced active material to maximize cycle performance and Partial state of charge (PSoC) operation
  • PSoC operation allows installation into nearly all cycling applications
  • Improved charging efficiency reduces grid corrosion for longer battery life
  • 12V Monobloc design aids installation and handling
  • Removable carrying handles allow installation without specialized lifting equipment
  • Rugged polypropylene case and cover for resistance to shock and vibration
  • AGM construction means no liquid electrolyte, eliminates watering and spills
  • UL recognized flame-arresting one-way pressure-relief vent for safety and long life
  • Over 98% recyclable
  • Not restricted for surface transport; classified as non-hazardous material as related to DOT-CFR Title 49 parts 171-189.

Additional Models and Data

ModelVoltageCapacity Amp-Hours (Ah) @77°F (25°C) | 20-HOUR RATECapacity Amp-Hours (Ah) @77°F (25°C) | 100-HOUR RATEMaximum DischargeInternal ResistanceMaximum Short Circuit Current (Per IEC 60986)
AES 7.5-16007.5V168182800A2.603270
AES 8.0-16008V168182800A2.603270
AES 12-2170F12V192209800A4.602729
AES 12-2870F12V224242800A3.603477

Proprietary Technologies

0
C&D True Front Access™
  • Internally welded front terminals

  • Easier to install and maintain

0
C&D Ohmic Ring™ w/ Lock-On Capability
  • Higher measurement accuracy

  • Improve system reliability

0
Nano-Carbon Technology
  • Supports PSOC (Partial State of Charge)

  • Up to 3,000 cycles at 50% DoD
