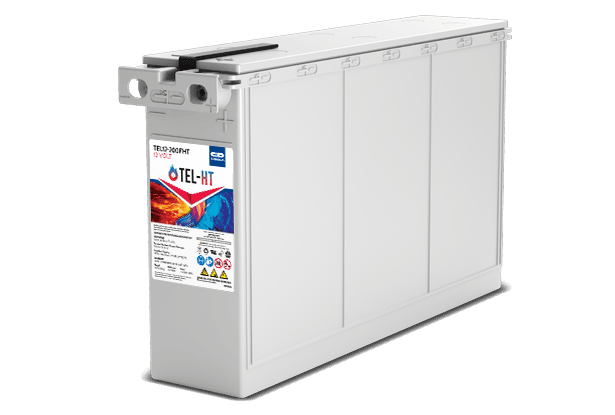

TEL-HT High Temperature Pure Lead AGM Battery

TEL-HT High Temperature Pure Lead AGM Battery

  • TEL-HT High Temperature Pure Lead AGM Battery

TEL-HT High Temperature Pure Lead AGM Battery

Power to the extreme

TEL High Temperature Series batteries provide standby power to critical applications in the telecommunications industry. For telecom applications in extreme conditions, C&D Technologies’ TEL-HT batteries are the longest-lasting high-performance VRLA battery.

The TEL-HT is a high temp telecom battery built for durability and service life. By deferring replacements and reducing operating expenses, TEL-HT telecom batteries can save on costs.

BAttery Quick Facts
Battery type

VRLA Pure Lead AGM (VRLA)

capacity

31 - 195 Amp-Hours

design life

12+ Years

operating environment

Indoor Outdoor Controlled Outdoor Uncontrolled

Certifications & Compliances

Meets NEBS™ GR63 CORE, GR4228/SR4228 Telcordia UL94-V0 Flame retardant Case and Cover UL1989 Compliant

industries

Features & Benefits

Reliability in all environments

  • Simplify your network design and save money on cooling costs regardless of the region or conditions. Our engineers designed TEL-HT to operate in extreme temperatures ranging from -40°F to 160°F (-40°C to 71°C).

Longest service life

  • We designed TEL High Temperature for quality, battery service life, and value. Our patented Pure Lead (MSE) technology and optimized grid alloys minimize corrosion and provide long-lasting performance. This longevity can lead to approximately 20% in cost savings.* C&D backs up TEL-HT high temp AGM batteries with an industry-leading warranty.**

Supports sustainability

  • Low float currents allow TEL-HT batteries to operate at higher temperatures for longer, which lowers energy demand. They are 98% recyclable and manufactured with up to 80% recycled materials. C&D creates high quality products and process improvements to minimize our environmental footprint.

Maintenance efficiency

  • True Front Access terminals minimize failure points and save maintenance time, without sacrificing reliability. AGM technology eliminates periodic water maintenance. The TEL-HT's rugged polypropylene case protects all internal battery components.

Features

  • 12+ year design life
  • 12-volt monobloc battery
  • Technology: Valve Regulated Lead Acid (VRLA) Absorbed Glass Mat (AGM) battery
  • Available in top terminal and patented True Front Access terminal designs
  • TEL High Temp uses MSE Pure Lead Technology for ultra-low float current, extending the life of the battery
  • AGM technology is non-hazardous for easy shipping and transportation
  • Extended battery service life in elevated temperature applications
  • Store TEL-HT batteries for up to 2 years at 77⁰F (25°C)
  • C&D Ohmic Ring™ provides most reliable and easy maintenance readings

*Moving from 5-year replacement to 6-year
**Specific maximum average temperature in our warranty document

Additional Models and Data

TEL-HT ModelNominal Capacity 8-Hours to 1.75 VPC at 25°CIEC Capacity 10-Hours to 1.80 VPC at 20°C
TEL-HT-12-180FHT181 Ah174 Ah
TEL-HT-12-190FHT199 Ah195 Ah
TEL-HT-12-200FHT195 Ah192 Ah

Proprietary Technologies

0
Pure Lead with MSE Technology
  • Up to 40% longer life than VRLA

  • Up to 24-month shelf life

0
C&D Ohmic Ring™ w/ Lock-On Capability
  • Higher measurement accuracy

  • Improve system reliability

0
C&D True Front Access™
  • Internally welded front terminals

  • Easier to install and maintain
