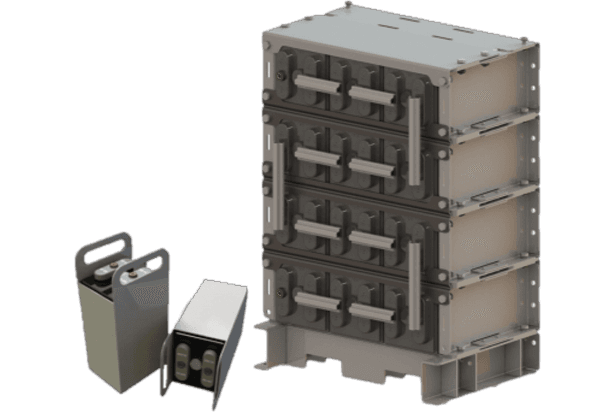

• Liberty AES
  • Type:

    VRLA AGM Lead-Carbon

  • Liberty AES
  • Capacity:

    124-1834 Amp-Hours

  • c&d Technologies Battery
  • Design Life:

    3,000 Cycles @ 50% DoD

  • cd Technologies Battery
  • Operating Environment:

    Indoor
    Outdoor Controlled
    Outdoor Uncontrolled

Refer to product data sheet for more information.

  • 50 Ah and 100 Ah size models
  • C&D Nano-Carbon® enhanced active material to maximize cycle performance and PSoC operation
  • Rugged case design made of a strong propylene that protects all day against extreme temperature, shock and vibrations.
  • Versatile, maintenance-free solution with no watering required
  • Low calcium Lead/Tin alloy plates for efficient gas recombination for long life in both cycling and float applications
  • Modular design for ease of installation and stacking flexibility
  • Reduced system hardware for rapid installation and reduction in maintenance time
  • Custom configurations allow for upright, side or mounted use
  • Terminal versatility – ease of ohmic readings with C&D Ohmic Ring®
  • Threaded copper alloy inserts for reduced maintenance and increased safety
  • Many systems meet IBC and UBC seismic requirements
  • High-strength, leak-free polymer container allows for non-restricted shipping
  • Water: non-hazardous per IMDG Amendment 27 Surface
  • non-hazardous per DOT-CFR title 49, 171-189 Air: IATA/ICAO, provision A67
  • 100% helium leak tested and dielectric tested to ensure seal integrity
  • 95% round trip efficiency and 99.9% charge efficiency

Proprietary Technologies

  1. DCS Technology
  2. C&D Nano-Carbon
  3. AGM Glass Mat Technology
  4. Ohmic Ring

Certifications

  1. UL-Recognized Component
  2. ISO 9001 – Quality System Certification
  3. Many systems meet IBC and UBC seismic requirements
  • 01.

    Remote/Hybrid Sites

  • 02.

    Communications

  • 03.

    Off-Grid/Renewable

  • 04.

    Grid scale energy storage

  • 05.

    Cycling Applications

  • 06.

    Telephone Central Offices

  • 07.

    Mobile Telephone Switching Office

  • 08.

    Cable Head End Sites

  • 09.

    Fiber Optic Regenerator Sites

  • 10.

    Microwave Repeater Sites

  • 11.

    Telephone & Internet Network Nodes
