• LCT
  • Type:

    Flooded

  • LCT
  • Capacity:

    840 - 2320 Amp-Hours

  • c&d Technologies Battery
  • Design Life:

    20 Years

  • cd Technologies Battery
  • Operating Environment:

    Indoor
    Outdoor Controlled

Refer to product data sheet for more information.

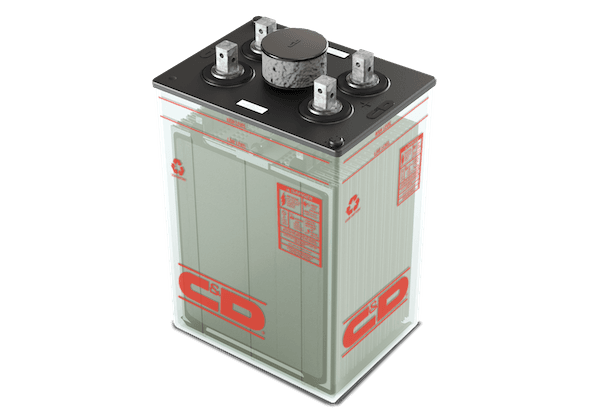

LCT-HP-battery-CD-technologies -1

Features & Benefits

  • Long life positive plates cast with a proprietary process and alloy
  • Waterbath charging results in consistently formed plates for reliable performance out of the box (no cycling required in the field)
  • Proprietary expander enables stable and uniform float voltages (down to 2.17 Vpc), reducing the need to equalize and resulting in proven 20-year service life
  • Suspended positive plate permits free growth without pressure on jar and cover
  • Flame-retardant covers enhance battery plant safety with self-extinguishing properties LOI >32%, UL 94V-0
  • Low-evaporation, flame-arrester vent to extend watering intervals and prevent external sparks from reacting with the hydrogen inside the cell
  • NEBS approved battery systems (cells and racks) that meet telecom companies’ specifications
  • Narrow 17” (43.18 cm) depth racks available – NEBS qualified
  • Transparent container allows visual inspection of plates
  • Soft rubber post seal minimizes stress on post reducing maintenance requirements
  • Computer controlled heli-arc welded post seal results in consistent and reliable seal for less maintenance and longer product life
  • No requirement for periodic specific gravity readings

Proprietary Technologies

  1. Proprietary expander
  2. Computer controlled heli-arc welded

Certifications & Compliances

  1. NEBS approved systems and racks
  • 01.

    Telephone Central Offices

  • 02.

    Mobile Telephone Switching Office

  • 03.

    Cable Head End Sites

  • 04.

    Fiber Optic Regenerator Sites

  • 05.

    Microwave Repeater Sites

  • 06.

    Telephone & Internet Network Nodes
